    PROJECT IN BILLERICAY, ESSEX

    Tiered Garden Transformation in Billericay

    A complete renovation of a split-level back garden in Billericay, Essex, featuring porcelain paving, artificial grass lawn, bespoke porcelain steps and timber sleeper raised beds.

    Project Specifications

    Location

    Billericay, Essex

    Completion Date

    September 2024

    Project Duration

    Three Weeks

    Main Services

    Patios, Artificial Grass & Landscaping

    Principal Materials

    Porcelain, Artificial Turf & Sleepers

    PROJECT GOALS

    The Brief

    The original back garden in Billericay was split across three distinct levels, but the layout felt dated, fragmented, and difficult to access. Steep banks and worn surfaces made navigating between levels awkward, while natural grass on the elevated tiers was hard to mow and maintain.

    The client requested a complete overhaul to transform the sloping site into a clean, modern, multi-tiered garden with smooth transitions between zones. Key priorities included installing high-quality grey porcelain paving, creating safe porcelain-clad steps, laying low-maintenance artificial grass across flat tiers, and introducing timber railway sleeper beds to add warmth and planting depth.

    Our team carefully engineered the levels, retaining walls, and drainage paths to deliver a unified, easy-care garden that makes full practical use of every tier.

    VISUAL SHOWCASE

    Project Gallery

    Click on any photograph to enlarge and inspect the details of our porcelain paving, stepped level access, artificial turf installation and timber sleeper joinery.

    Tiered garden transformation in Billericay featuring grey porcelain paving, artificial lawn, and timber sleeper edging

    Tiered Sloping Garden Transformation Billericay

    Overview of the finished three-tiered garden in Billericay, featuring grey porcelain paving, artificial lawn, and timber sleeper edging.

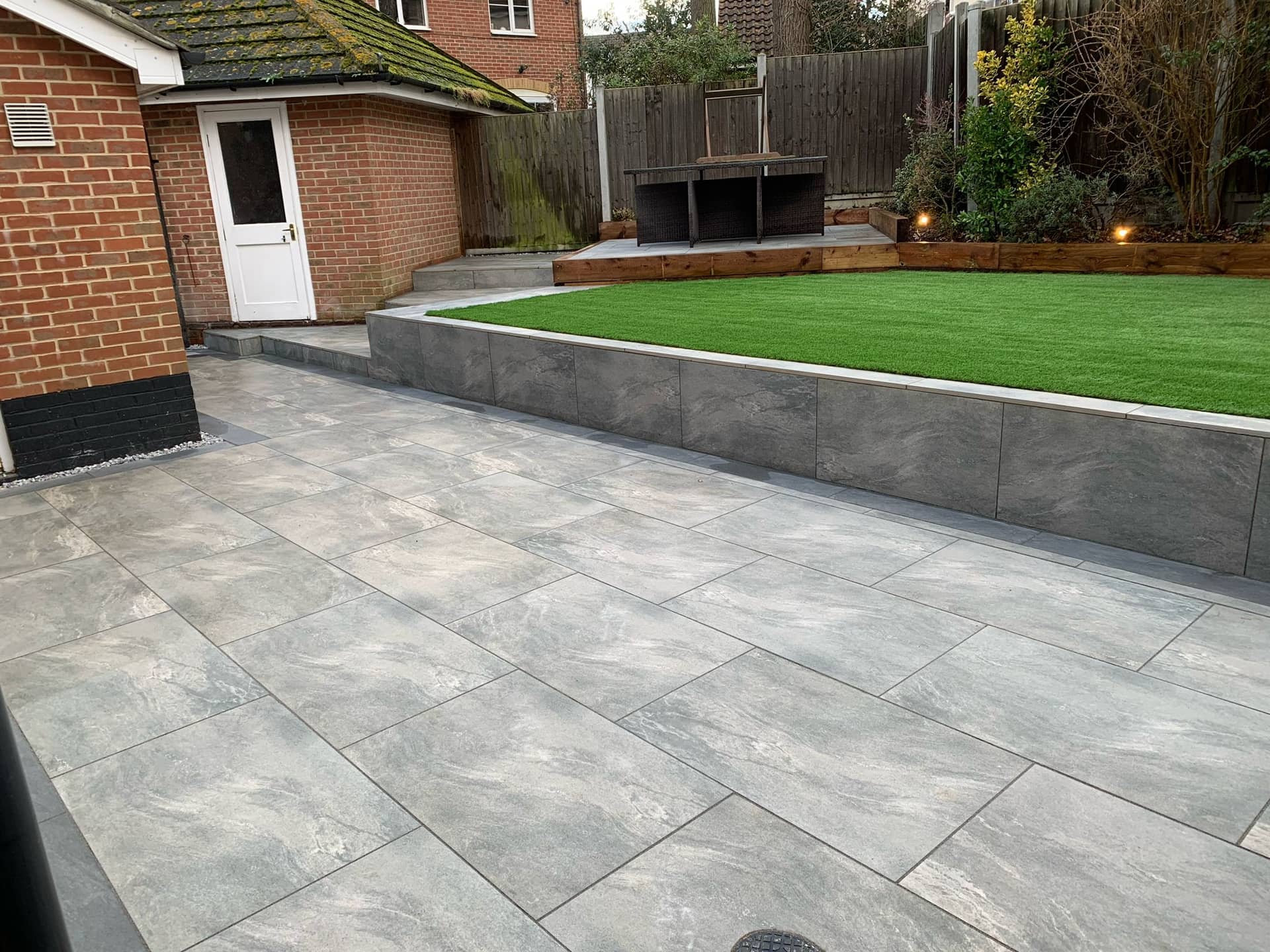

    Raised artificial grass lawn tier with grey porcelain patio paving and sleeper-edged planter beds

    Raised Artificial Lawn Tier & Porcelain Patio

    Raised artificial grass lawn tier with grey porcelain patio paving and sleeper-edged planter beds.

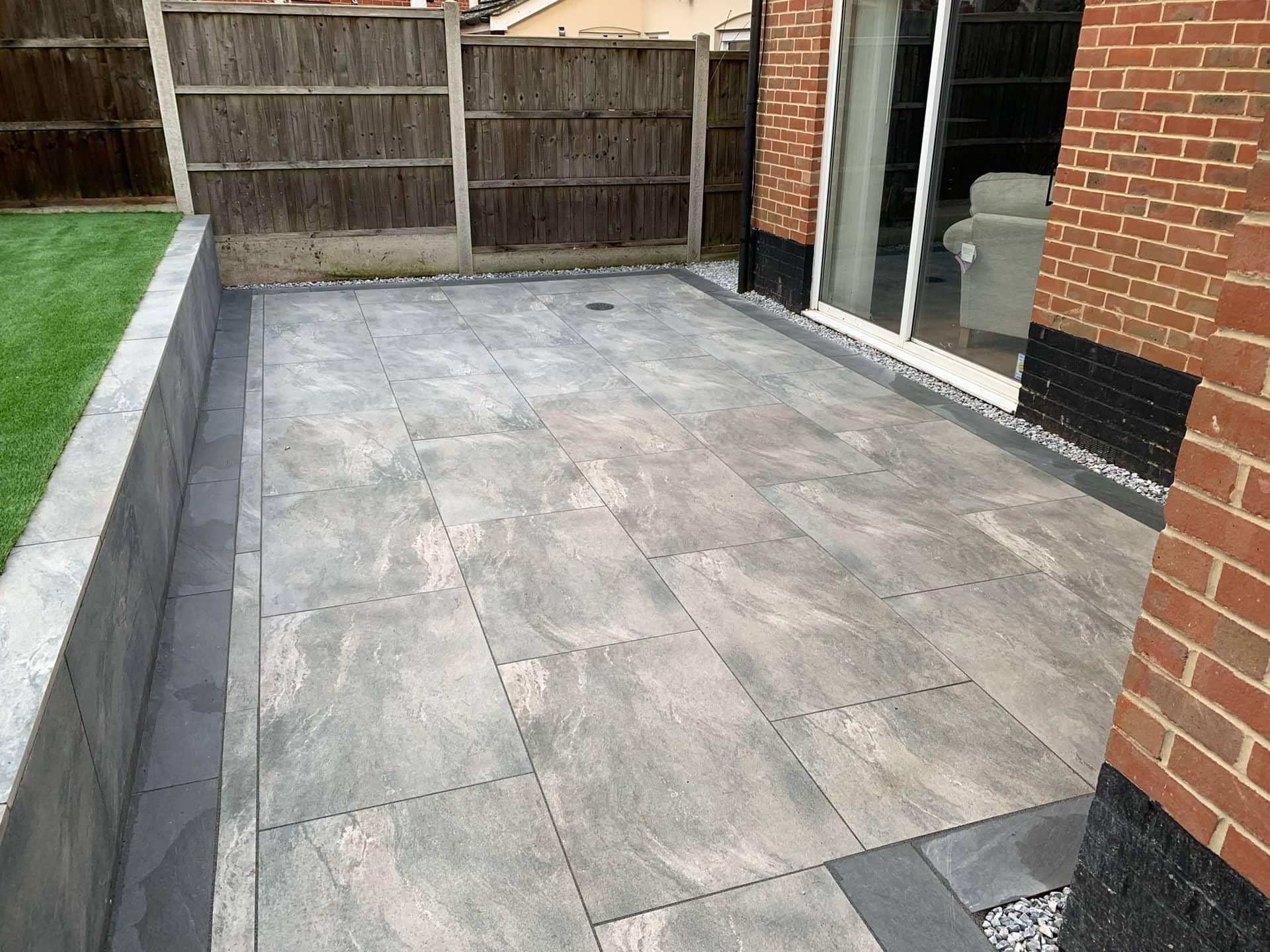

    Porcelain patio paving with contrasting charcoal border edging and raised artificial lawn

    Porcelain Patio & Artificial Grass Edging

    Porcelain patio paving with contrasting charcoal border edging adjacent to the raised artificial lawn.

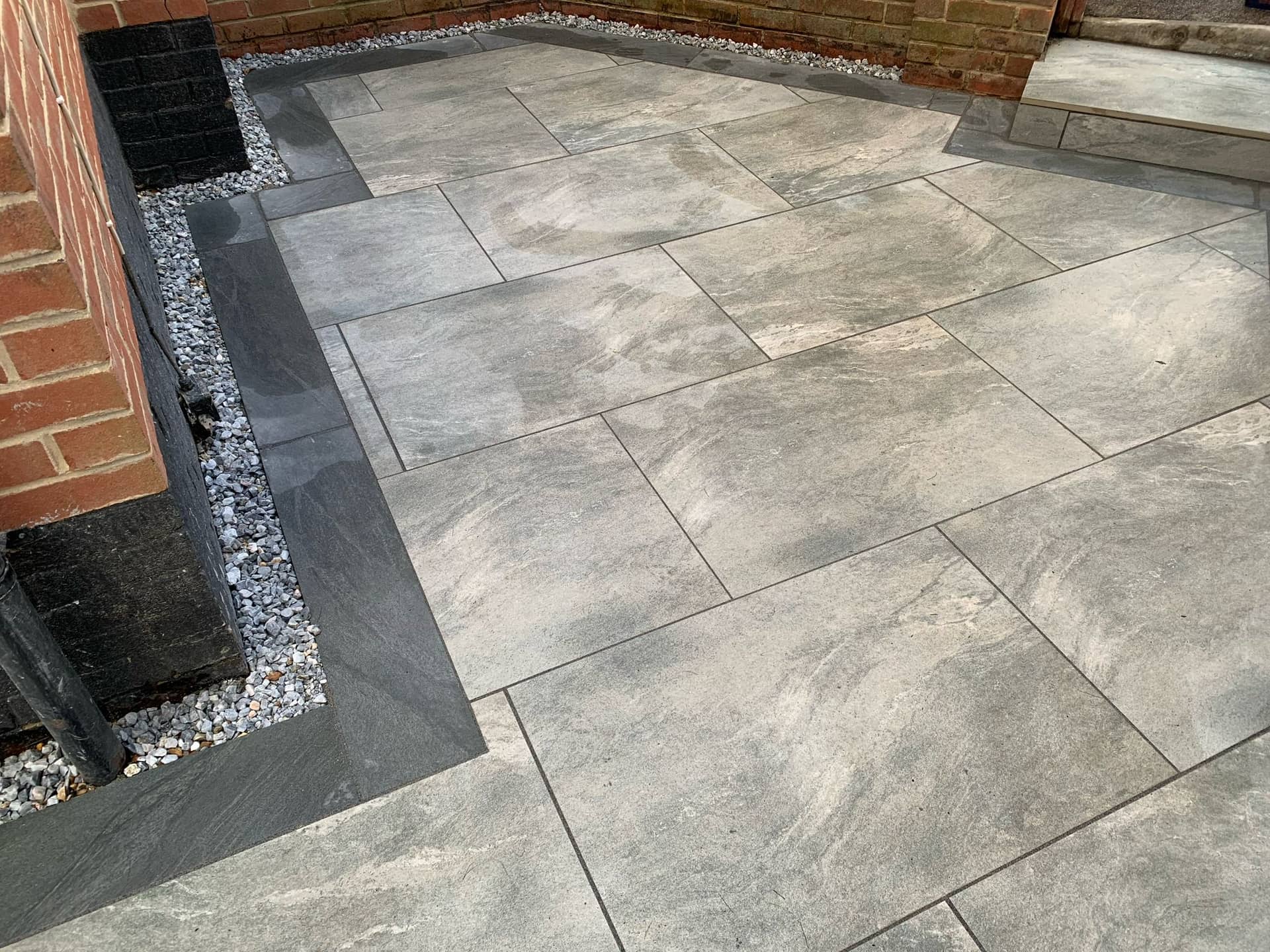

    Detail view of porcelain paving corner with integrated channel drainage and sleeper edging

    Porcelain Paving & Channel Drainage Detail

    Close-up detail of porcelain paving with integrated channel drainage and solid sleeper borders.

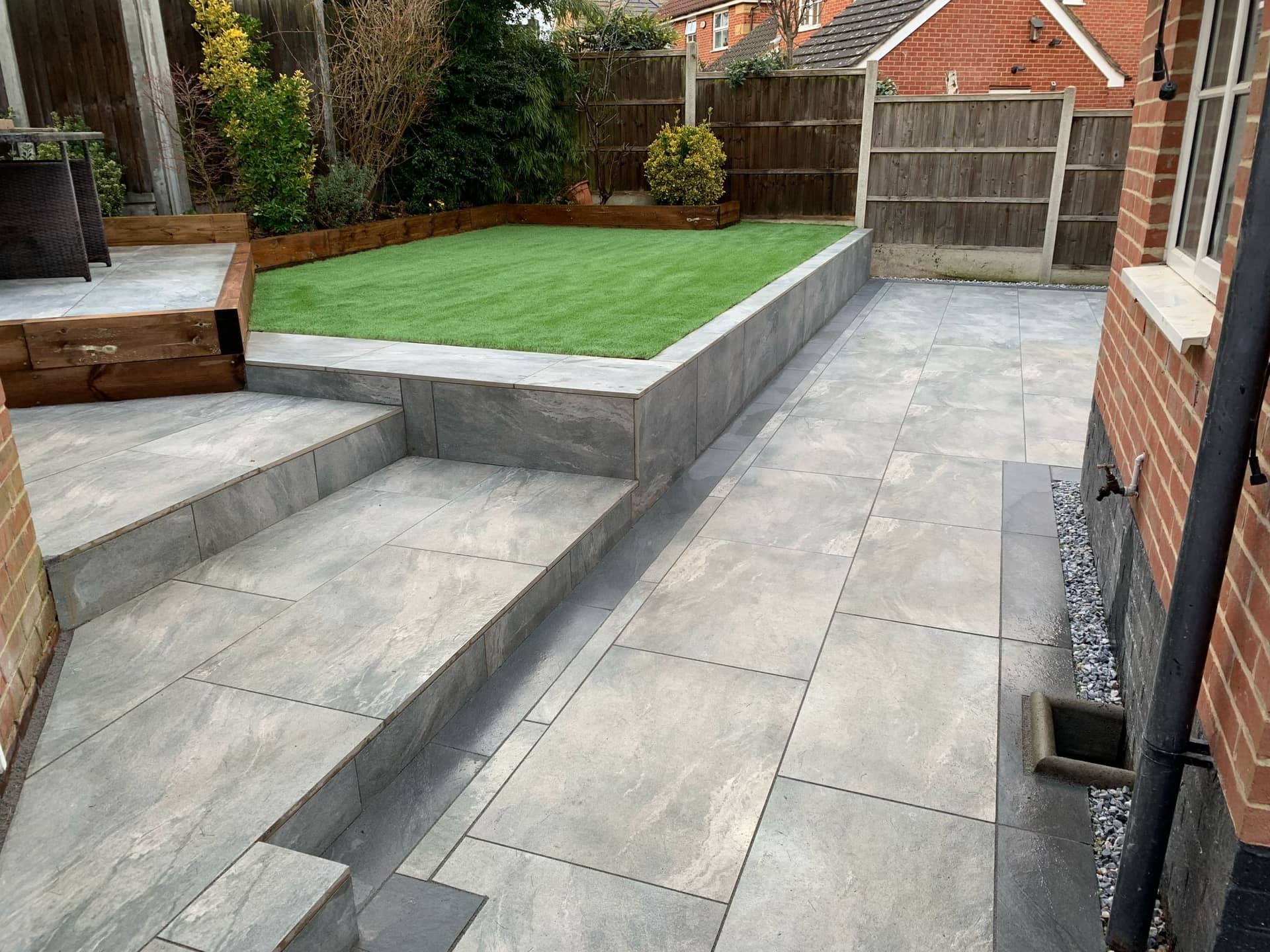

    Porcelain stepped access between garden tiers faced with matching porcelain tiles

    Porcelain Steps Between Garden Tiers

    Porcelain-clad steps providing safe, elegant access between the lower patio and upper lawn tiers.

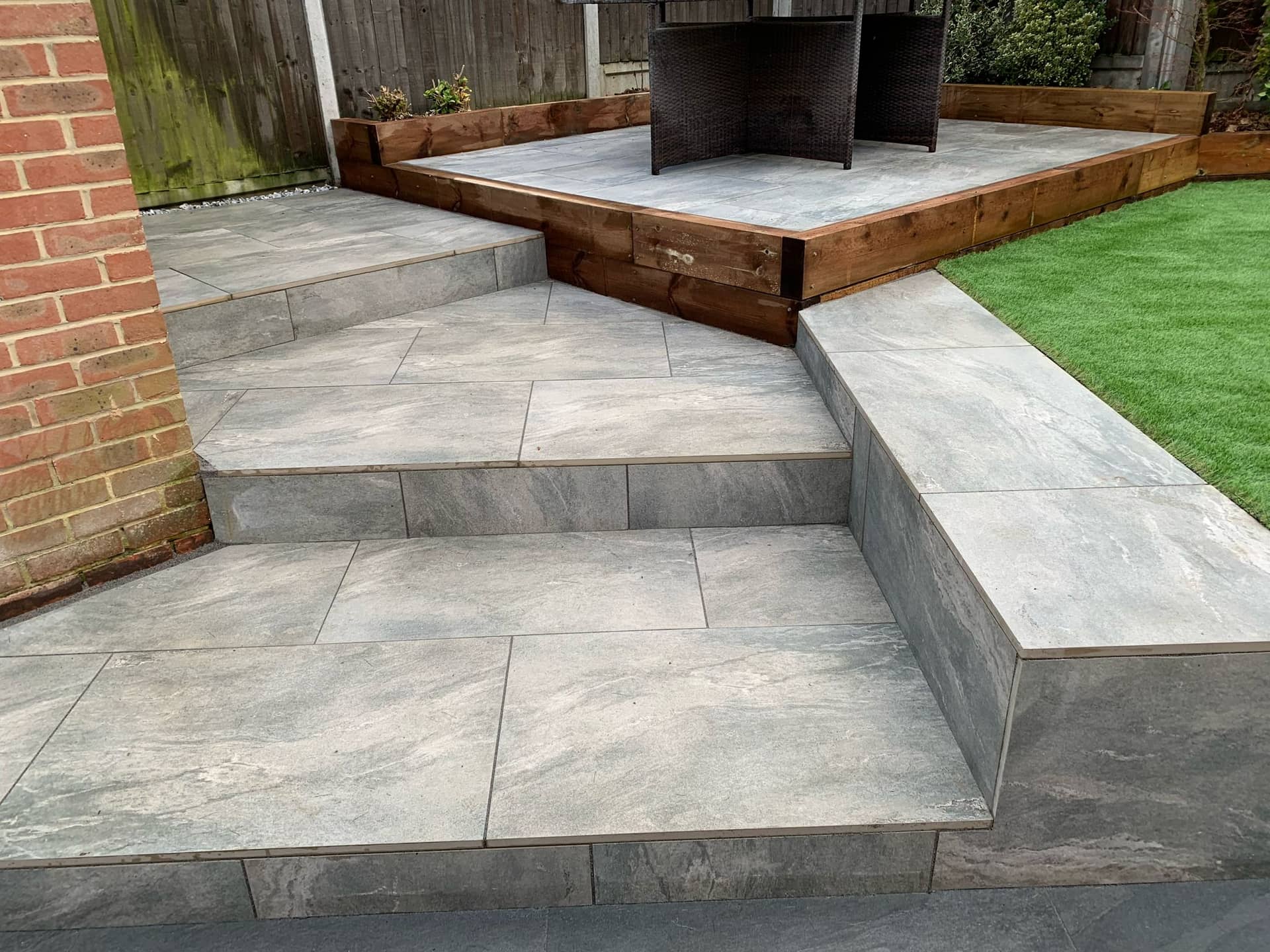

    Raised patio terrace with porcelain steps and artificial grass lawn in Billericay

    Raised Patio Terrace & Porcelain Steps

    Raised patio seating area on the upper level with matching porcelain steps leading down to the lower tier.

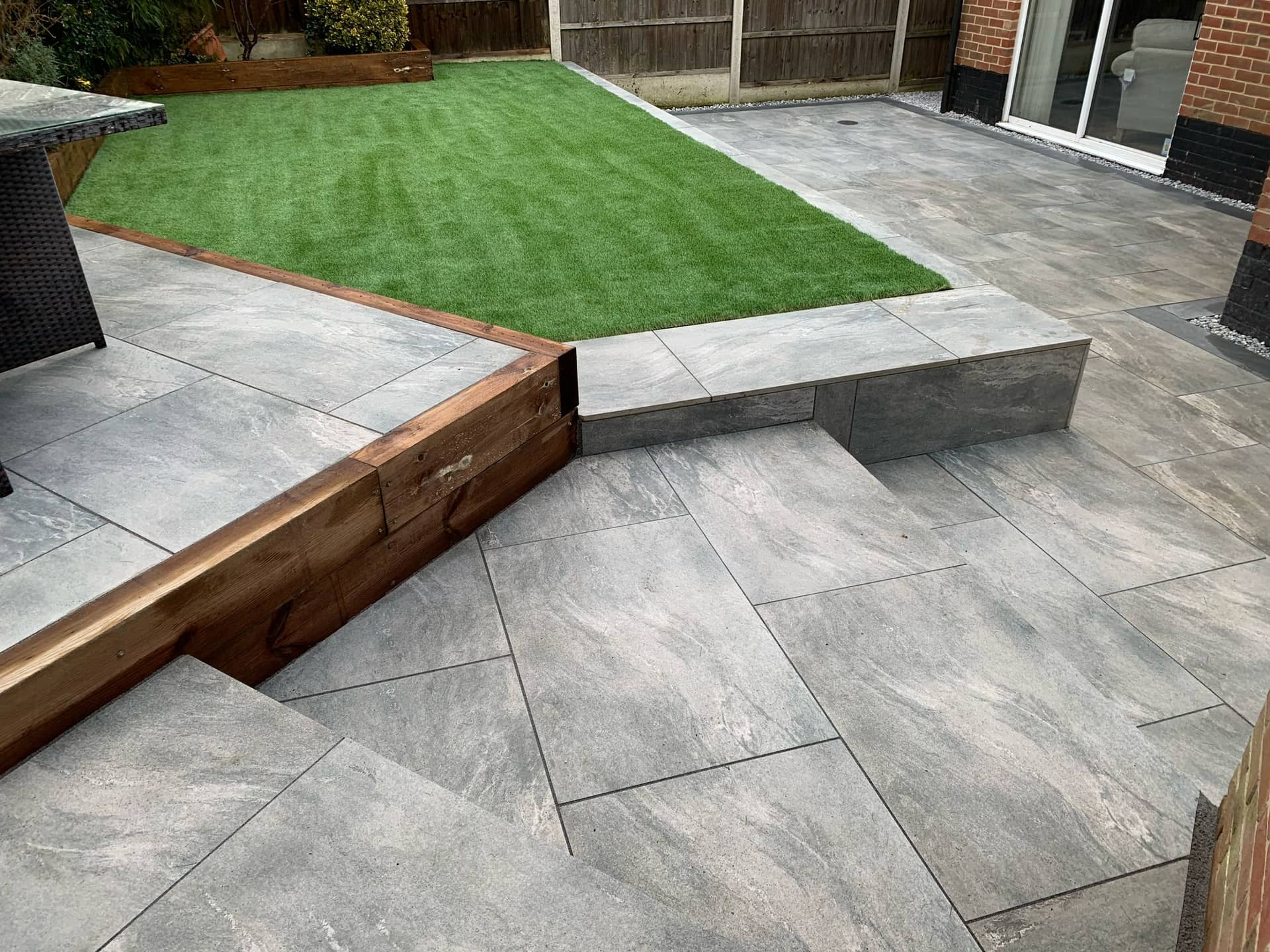

    Raised timber railway sleeper planter bed framing the upper artificial lawn tier

    Timber Sleeper Raised Planter Bed

    Raised timber railway sleeper planter bed constructed along the back garden boundary.

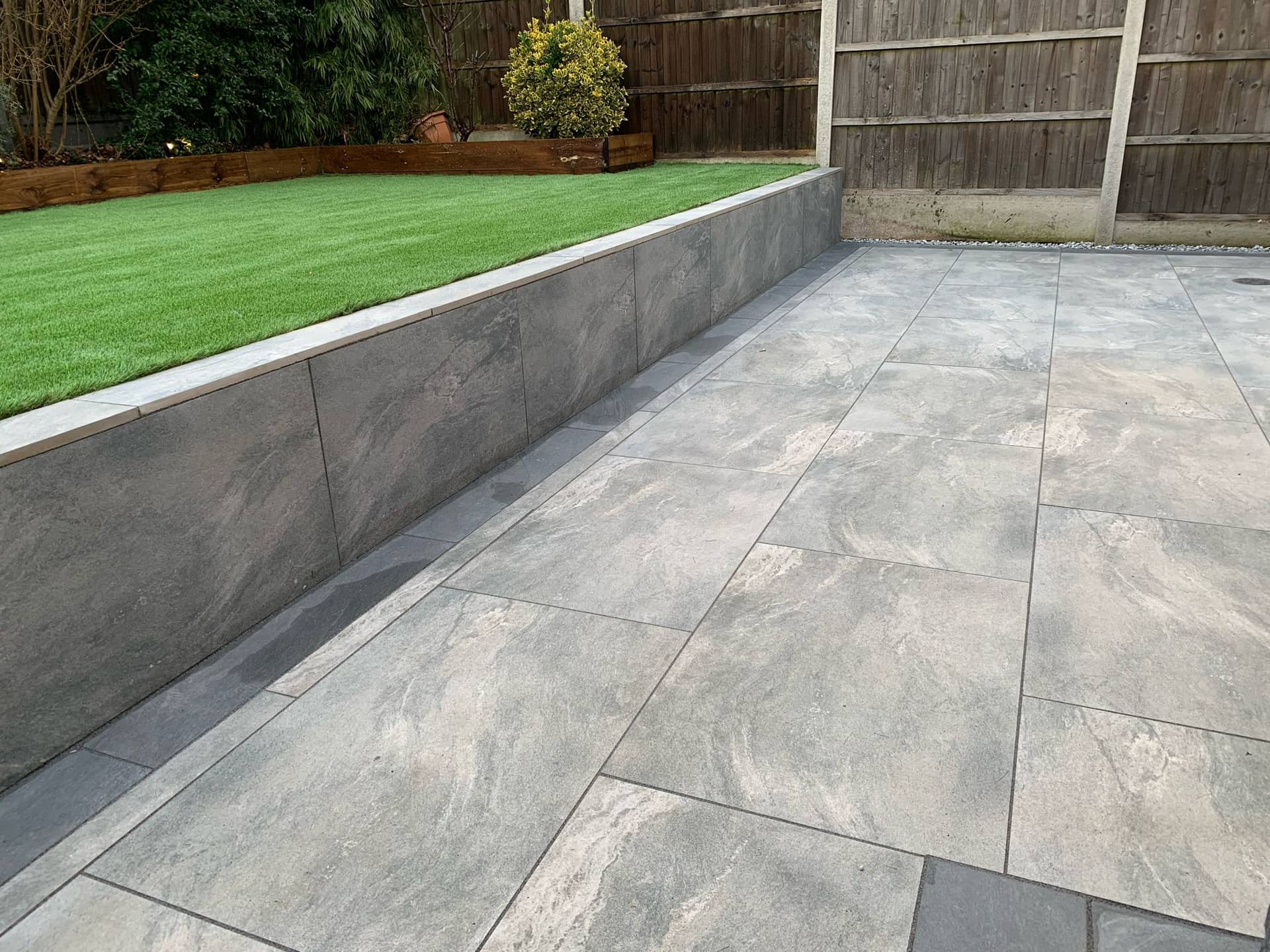

    Full view of three-tiered garden in Billericay showing porcelain paving, artificial grass and sleeper beds

    Three-Tiered Garden Layout Billericay

    Wide view showing how porcelain paving, artificial grass and timber sleeper beds unify all three levels.

    CONSTRUCTION DETAILS

    What We Installed

    We began by clearing the old paving, loose earth, and overgrown lawn, regrading the slope into three distinct, level terraces. Concrete foundations and blockwork retaining structures were installed to secure each level safely.

    Grey porcelain paving was laid on a full mortar bed across the main lower patio, upper terrace, and steps. Each riser and retaining wall face was tiled in matching porcelain for a seamless visual flow. Integrated channel drainage was set discreetly into the patio edges to handle rainwater runoff effectively.

    On the mid and upper tiers, we installed high-density artificial grass over a compacted aggregate base and weed membrane, delivering a vibrant green lawn that remains immaculate year-round without mowing. To complete the top level, raised timber railway sleeper beds were constructed to provide elevated planting space along the rear boundary.

    QUALITY SPECIFICATIONS

    Materials Used

    Grey Porcelain Paving

    Durable, slip-resistant grey porcelain pavers laid with matching tile-faced risers and step copings across all terraces.

    Premium Artificial Grass

    Soft, realistic artificial turf installed over a free-draining stone sub-base for child- and pet-friendly green space.

    Railway Sleepers

    Pressure-treated timber railway sleepers constructed to form raised planter beds and natural timber borders.

    Integrated Channel Drainage

    Discreet linear drainage channels fitted along patio borders to protect retaining walls and prevent standing water.

    PROJECT OUTCOME

    The Finished Garden

    The completed garden in Billericay successfully converts a challenging sloping plot into a clean, practical, split-level living space. Porcelain paving unifies the lower patio and upper terrace, while artificial grass and timber sleeper beds soften the structural lines and add rich texture.

    To explore similar sloping site solutions and patio installations across South Essex, visit our dedicated patio installation, artificial grass services and decking pages, or check our local service hub for landscaping in Billericay.

    LONG-TERM CARE

    Maintenance Suggestions

    To keep porcelain paving, artificial grass and timber sleeper beds looking their best across all garden levels, we suggest these maintenance practices:

    Porcelain Paving & Step Care

    Sweep steps and patio surfaces regularly to prevent leaves from decaying on tile surfaces. Wash down with water and a mild pH-neutral detergent every spring. Avoid wire brushes or acidic cleaners on porcelain grout joints.

    Artificial Grass Maintenance

    Remove stray leaves and garden debris using a stiff broom or plastic rake. Brush against the grain occasionally to keep grass fibres upright and plush. Hose off occasional dirt or pet waste with clean water.

    Sleeper Bed & Drainage Upkeep

    Check timber sleepers annually and apply an exterior wood preserver if desired to maintain rich color. Inspect drainage channel grates periodically after heavy rain to clear trapped silt or leaves.
